Washing system parts
Enka Tarım tarafından geliştirilmiş sağımhane yıkama sistemleri, süt sağım makineleri ve süt sağım hattının düzenli ve etkin bir şekilde yıkanarak temizlenmesini sağlar.
Yarı otomatik ve otomatik seçenekleriyle birlikte gelen Enka yıkama sistemi ile süt sağım hattının temizliği hem kolaydır ve hem de güvenilirdir.
Modern yıkama sistemleri, su ve dezenfektan kullanımınımı optimize ederek hem yıkama maliyetini düşürür hem de çevre dostu bir temizlik sağlar. Kontrol paneli ile ayarlanabilen yıkama programları her çiftliğin ihtiyacına uygun çözümdür.
İnek, keçi ve koyun sağımhaneleri için özel olarak tasarlanmış ve üretilmiş Enka yıkama sistemleri, son derece dayanıklı ve kolay kullanılan ürünlerdir, gerekli bakımları yapıldığında uzun yıllar boyunca hizmetini sürdürür.
-
-
-

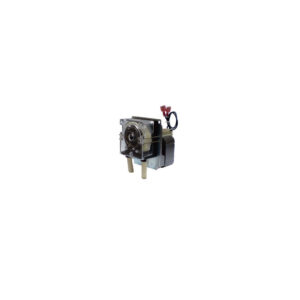

Dosing pump for washing systems
Voltage: 230 V 50Hz Dimensions: 85 x 105 x 135 mm Weight: 1.8 kg Flow rate: 30 l/hour Tolerance: 5% By means of the pulley and hose in the dosing pump, it draws the disinfectant with the vacuum that it creates and transfers it to the washing tub. A time relay connected to the system…
-
ED 750 semi-automatic control panel
It is the control unit for the milking and washing systems of the milking parlors. The vacuum pump is activated during milking. This system differs from the ED1000 system; the acid and alkaline disinfectant is placed in the disinfectant box by the milker himself. Acid-alkaline disinfectants placed in the disinfectant contrainer during washing and cold-hot…
-
Hot – cold water control panel
It works according to automatic washing panel. It opens the hot / cold water valve with the signal it receives from the panel and provides the flow to the washing tub. It filters the water at the entrance and sends it to the system.
-
ED 1000 automatic control panel
It is the control unit for the milking and washing systems of the milking parlors. The vacuum pump is activated during milking. During washing, acid-alkaline disinfectant and cold-hot water are automatically taken into the system and the water in the system is discharged through the piston valve. With automatic cold water and acid-alkaline disinfectants, washing…
-
3/4 x 3/4 hose
3/4 x 3/4 Used to ensure the entry of water from the faucets into the hot and cold water valve panel.
-

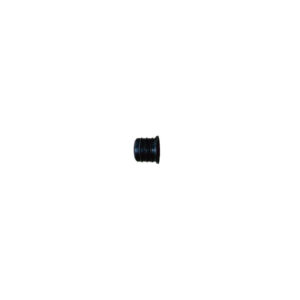

Rubber stopper for stainless steel milk outlet
It is used with 19500 stainless steel milk outlet.
-
Support for 100 lt PVC tub
Used with a 27301 PVC washing tub. Made of stainless steel. 58 x 100 x 42 cm. The washing tub is fixed by placing it inside these support legs. It is very easy to remove the tub from its location. There is no locking mechanism, so the tub can be quickly and easily removed and…
-
Milk outlet, stainless steel
Fits to a two-way valve. Made of stainless steel. Ø 33.7 x 2.0 mm.
-
Support for 70 lt PVC tub
Used with a 27300 PVC washing tub. Made of stainless steel. 58 x 73 x 42 cm. The washing tub is fixed by placing it inside these support legs. It is very easy to remove the tub from its location. There is no locking mechanism, so the tub can be quickly and easily removed and…
-
-

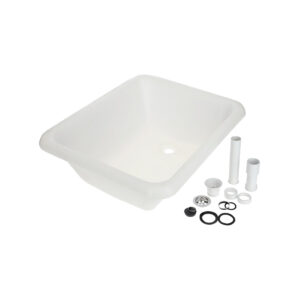

70 lt PVC washing tub
70 l Dimensions: 62 x 74 x 25 cm High-quality polyethylene Resistant to low and high temperatures Impact and shock resistant Acid resistant Smooth surfaces for easy cleaning Complete drainage thanks to sloped groove bottom Equipped with a strainer and drainage connection at the outlet Unbreakable Suitable for food contact Wall hanger or table frame…
-
Level indicator rod for washing tub
When the hot-cold water is taken into the tub, the magnetic ring on it rises with the water, closes the Jointcts in the bar at the set level and allows the washing system to start. Length: 30 cm.
-
